| Model | Pipe Size Inch | Height | L/M | GPM |
| GD1.25 | 1.25” (31-36 mm) | 26 mm | 22.7 | 6.0 |
| GD15 | 1.5” (37.45 mm) | 28 mm | 30.0 | 8.0 |
| GD2 | 2″ (46-55 mm) | 33 mm | 45.4 | 12.0 |
| GD3 | 3″ (68-80 mm) | 51 mm | 128.7 | 34.0 |
| GD35 | 3.5″ (85-94 mm) | 51 mm | 193.0 | 51.0 |
| GD4 | 4″ (95-104 mm) | 51 mm | 276.3 | 73.0 |
| GD5 | 5″ (105-130 mm) | 42 mm | 391 | 103 |
| GD6 | 6″ (145-155mm) | 51 mm | 550 | 145 |
(from North Carolina)
Our patented technology creates a one-way valve creates seal to eliminate issues this helps prevent and blocks things getting up through floor drain such as gases smells and even pests.

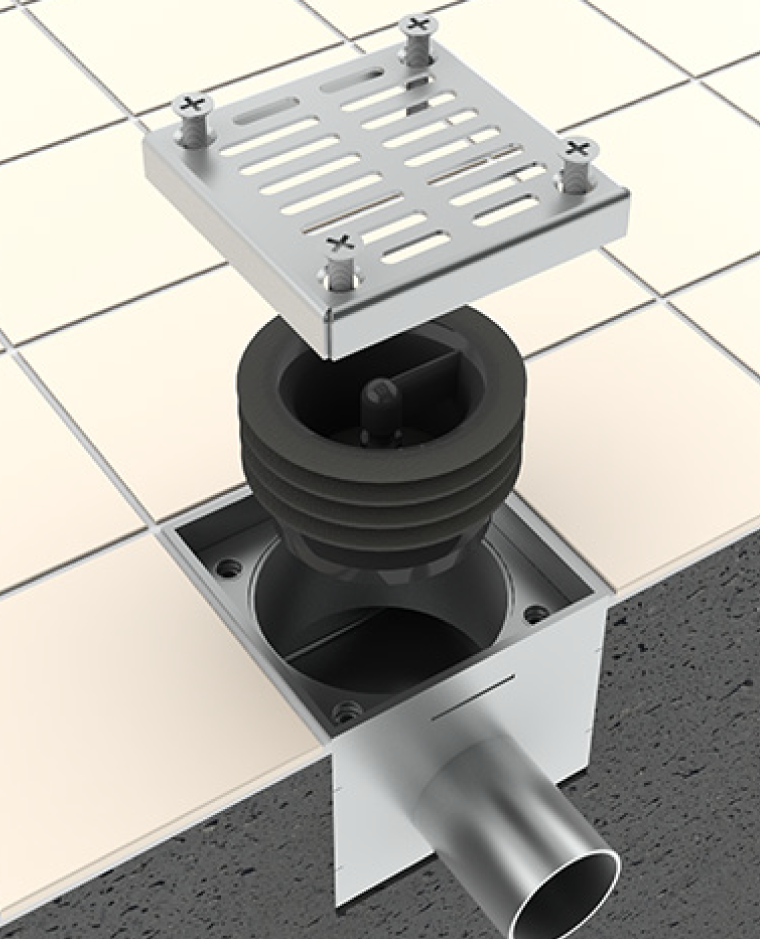

The Green Drain™ protects your pipes by maintaining a clear and clean waterflow so your pipes always stay safe and secure which helps with longetivity and prevents future problems.
Green Drain™ holds a significant number of patents in both the plumbing and water conservation sectors, making us one of the most innovative companies in the industry today.
The Green Drain™ is certified in over 100+ countries and supports virtually every industry from residential to commercial and industrial applications.

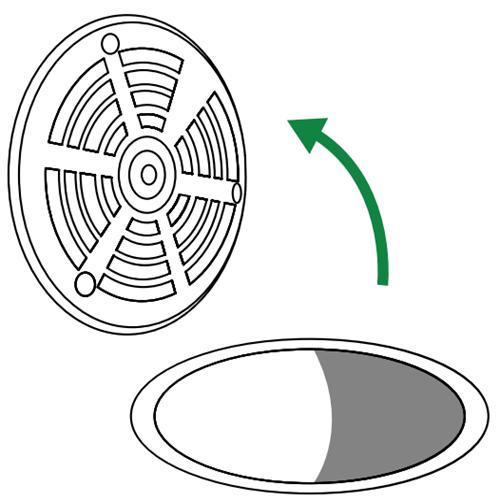

Remove Grate

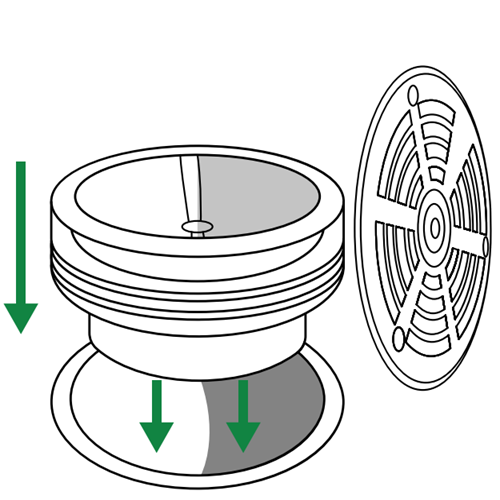

Insert Green Drain ™

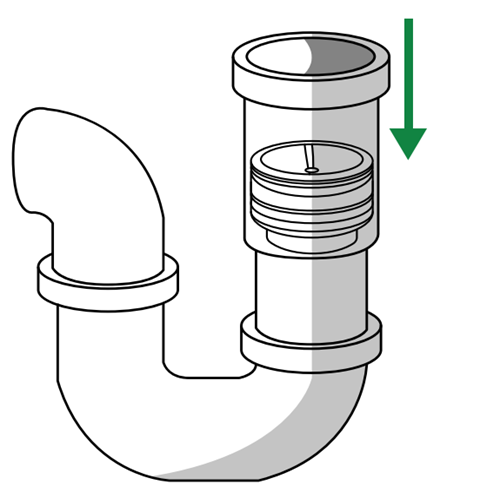

Recess 2″ to 4″ 3 Into The Physical Pipe

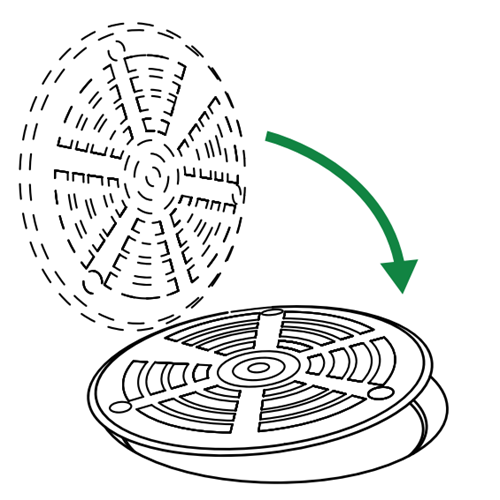

Close Grate

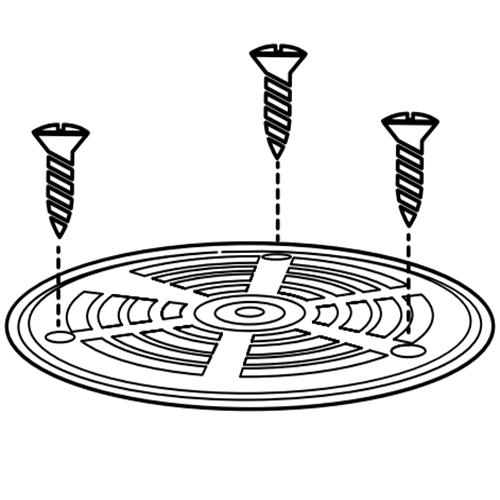

Fasten Screws

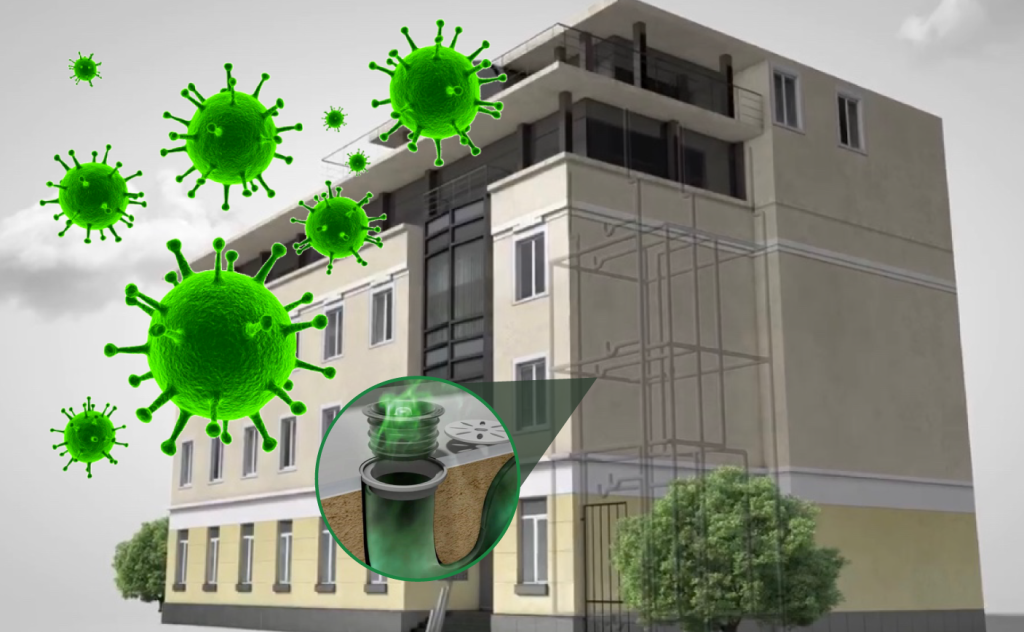

The Green Drain is an environmentally friendly water-free trap seal designed to prevent sewer gases, odors, and pests from entering buildings through floor drains. It uses a flexible silicone membrane that allows water to flow through while sealing off when water flow stops.
The device has a silicone membrane that opens to let water and debris pass through and closes to prevent the backflow of gases and pests once the water stops flowing.
The Green Drain’s design allows water to rinse the membrane, preventing the buildup of dirt, hair, and grease that is common in traditional trap seals.
It can be installed in almost all types of floor drains in various settings, including factories, schools, hospitals, restaurants, hotels, public buildings, and residential homes. It is suitable for new buildings and retrofits in older structures.

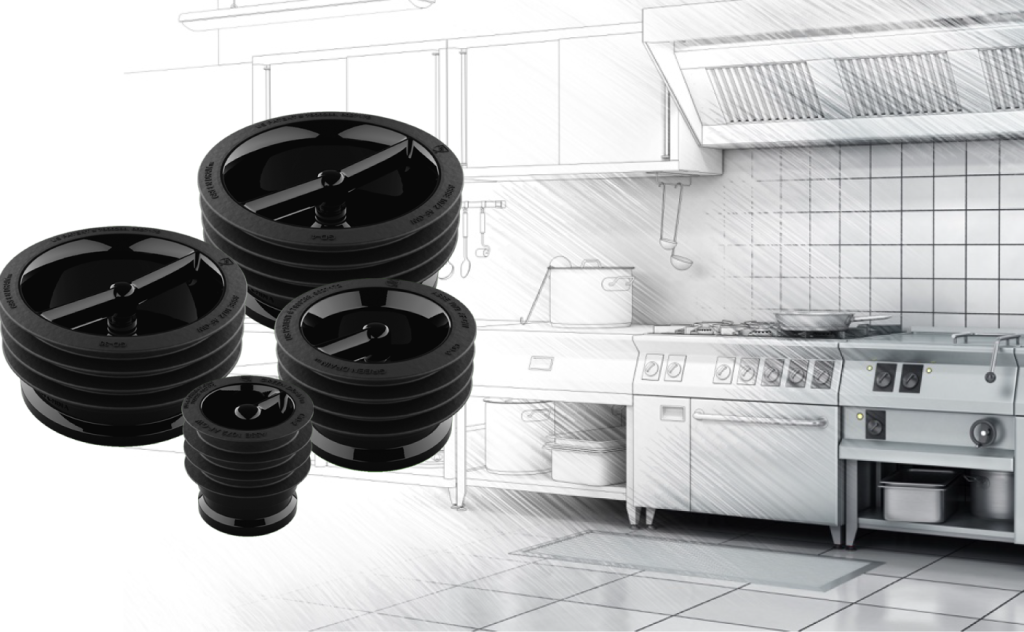

The Green Drain comes in eight sizes to fit different drain diameters:
Yes, it can be installed without tools. After removing the drain grating, the Green Drain can be pushed into the pipe to fit snugly. For optimal flow, it is recommended to recess the Green Drain 2-3 inches into the drainpipe.
Yes, it can be installed in shower drains by recessing the unit 4-6 inches into the pipe. It can also be installed in bathtub drains, but it is not recommended to replace traditional drain plugs with the Green Drain.
Yes, it replaces traditional water trap seals and offers several advantages, including improved indoor air quality, prevention of wastewater backflow, and resistance to vacuum in the drainage system.
Yes, the Green Drain can be used alongside a P-trap. It does not contain water and functions effectively in combination with other trap systems.
Yes, the Green Drain works in both horizontal and vertical installations.

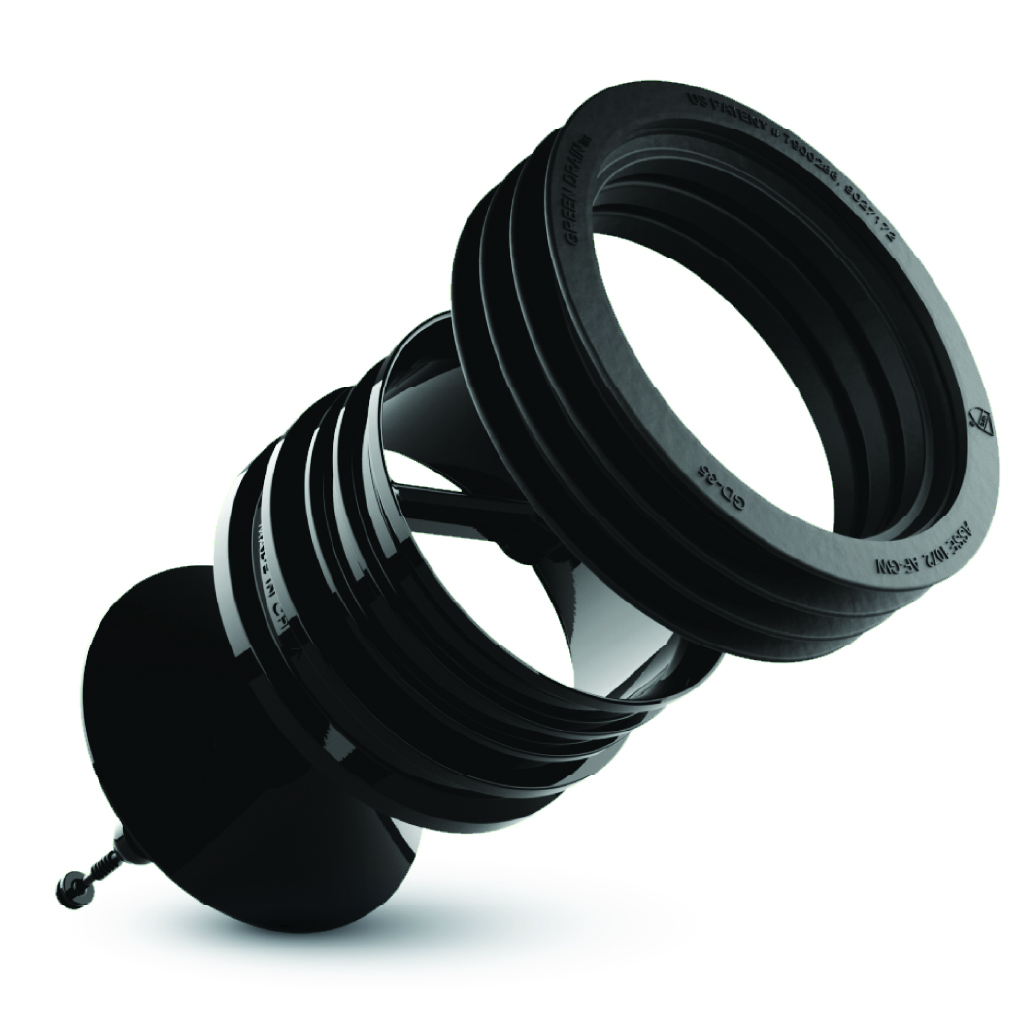

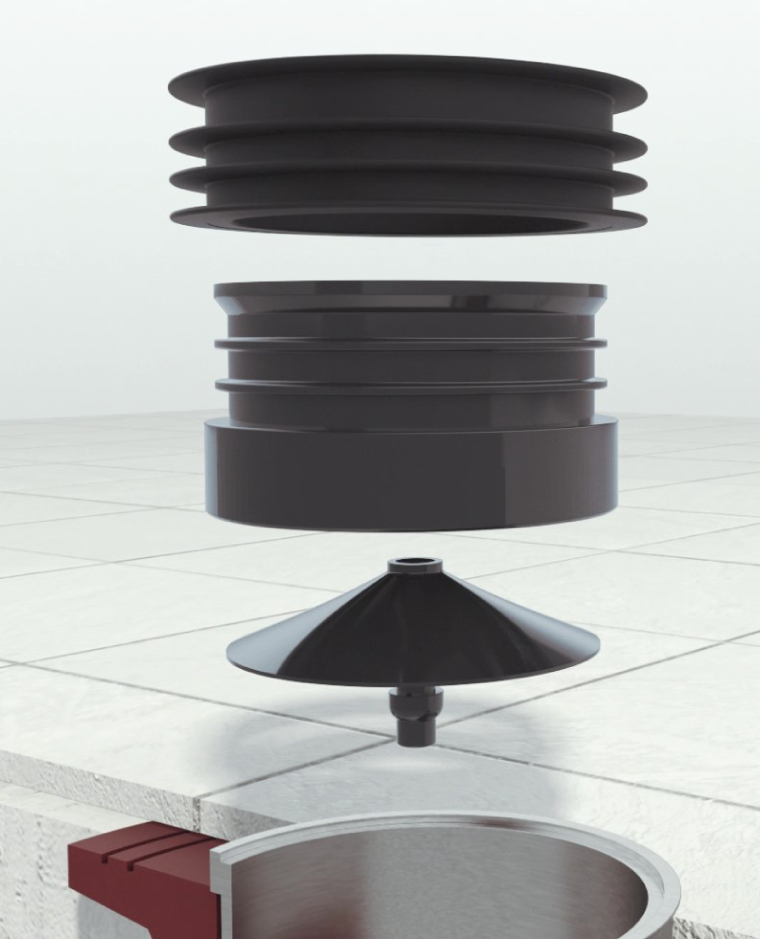

The Green Drain is constructed from UV-resistant ABS plastic with a silicone rubber seal/membrane and features four flexible sealing flanges for easy installation and a perfect fit.
Yes, it has been approved and tested by numerous institutions, including the International Association of Plumbing and Mechanical Officials (IAPMO), American Society of Sanitary Engineering (ASSE), and several international bodies. It meets various standards such as CE, ANSI, and HACCP.
No, the Green Drain is not classified as a backflow device, but it can withstand up to 4 lbs. of pressure before the silicone valve inverts.
The Green Drain improves indoor air quality, prevents pest infiltration, reduces exposure to hazardous sewer gases, and is eco-friendly by eliminating the need for trap primers and continuous water flow.
Measure the diameter of your drain opening and compare it with the available sizes of the Green Drain (1.25” to 6”). Ensure that the chosen size fits within the diameter range for a snug fit.
Yes, the Green Drain is designed to handle high flow rates without impeding water drainage. Specific flow rates can vary by size, but it generally accommodates typical residential and commercial drain flows.
The Green Drain is made from durable, UV-resistant materials that ensure a long lifespan. While specific longevity can vary based on usage and environmental conditions, it is designed to provide many years of reliable service.
Yes, the Green Drain can be used in outdoor drains, including those in parking lots, patios, and other exposed areas, as it is made from UV-resistant materials.
Minimal maintenance is required. It is self-cleaning, but periodic inspection and cleaning may be beneficial in environments with heavy debris or grease accumulation.
The Green Drain is designed to prevent common pests such as drain flies, cockroaches, and other small insects from entering through the drains. Its one-way valve effectively blocks these pests while allowing water to flow through.
By sealing off the drain when water is not flowing, the Green Drain prevents sewer gases and odors from entering the building, thus improving indoor air quality.
Yes, it can be used alongside other plumbing devices such as trap primers and P-traps. It is also compatible with various plumbing systems and codes.
If the Green Drain becomes clogged, remove it from the drain and clean it with water and a mild detergent. Ensure that no debris is blocking the silicone membrane before reinstalling it.
The Green Drain eliminates the need for water-filled trap seals, which can dry out and require frequent refilling. This helps conserve water and reduce utility bills.
Yes, the Green Drain is HACCP certified and safe for use in food preparation areas, including kitchens and food processing plants. It helps prevent contamination from sewer gases and pests.
Ensure you have selected the correct size. If it still does not fit, contact customer support for assistance or consider using an adapter to ensure a snug fit.
The Green Drain is designed to comply with various international plumbing codes. However, it is always advisable to check with local authorities to ensure compliance with specific local codes.
Yes, the Green Drain can be used in HVAC condensate drains to prevent backflow and block sewer gases and pests.
The Green Drain typically comes with a manufacturer’s warranty. Check the specific terms and conditions provided at the time of purchase.
No, the Green Drain is designed to prevent foul gases, odors, and pests from entering through the drain. It does not stop water from coming back up the drain; for that, a backflow preventer is required.
The Green Drain can handle a flow rate of up to 12 gallons per minute, which is suitable for most residential and commercial applications.
Yes, the Green Drain is made from UV-resistant ABS plastic and a silicone rubber sealing flapper, making it resistant to chemicals and corrosion.
The Green Drain is largely maintenance-free. However, periodic inspection and cleaning might be necessary in environments with heavy debris or grease accumulation to ensure optimal performance.
The Green Drain is designed to operate effectively in a wide range of temperatures, but it is advisable to check specific product specifications for minimum and maximum operating temperatures.

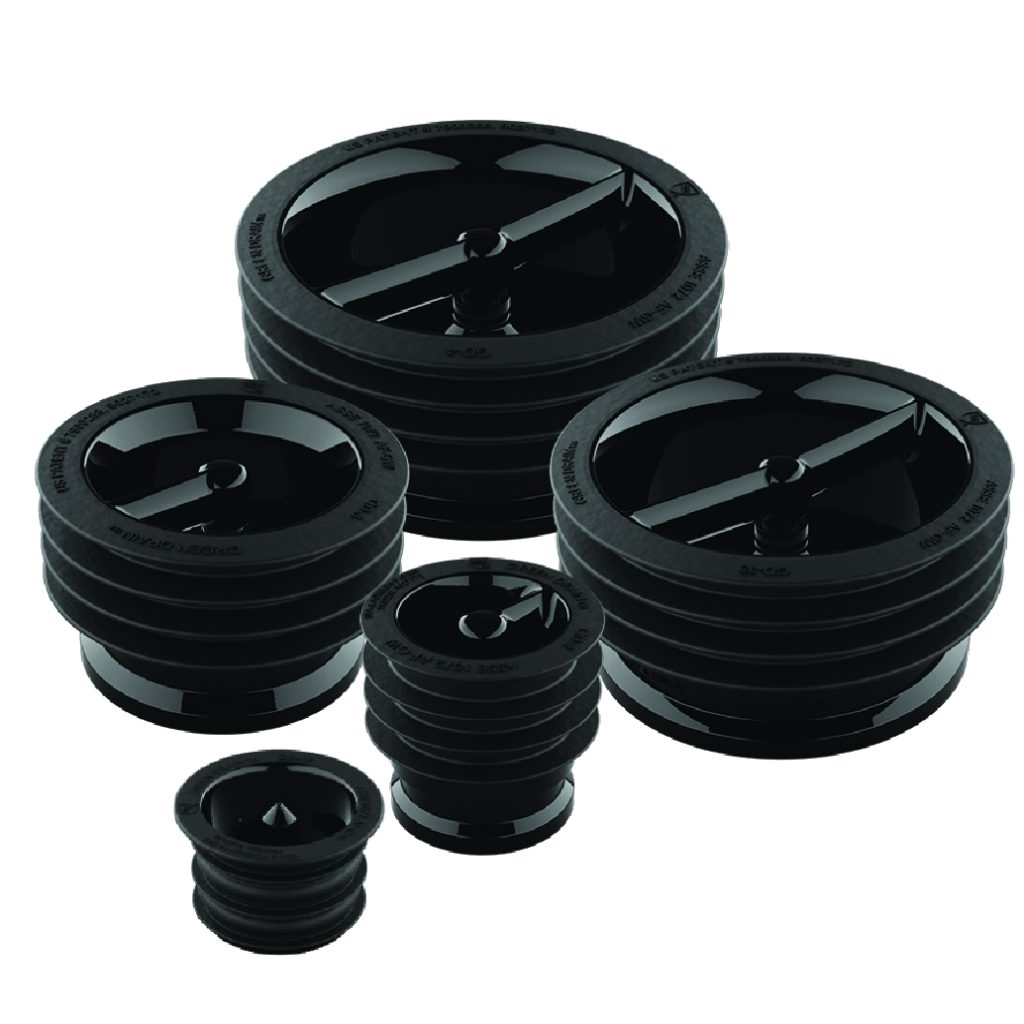

Yes, the Green Drain is available in multiple sizes (1.25”, 1.5”, 2”, 3”, 3.5”, 4”, 5”, and 6”) to fit a variety of standard plumbing sizes.
Yes, the Green Drain can be used in outdoor settings, including parking lots and patios, thanks to its durable and UV-resistant materials.
The Green Drain helps reduce water usage by eliminating the need for water-filled trap seals that can dry out and require frequent refilling. It also reduces the need for chemical cleaners, contributing to lower chemical runoff and environmental impact.
Yes, the Green Drain is HACCP certified, making it suitable for use in commercial kitchens, food processing plants, and other environments where food safety is a concern.
To remove the Green Drain, you can use a hook arm close to the spoke and pull up to remove it from the drain. Some models may require a specific tool for removal.
Yes, the Green Drain can be used in conjunction with other plumbing devices such as P-traps and trap primers, although it cannot replace a trap primer where one is required by code.
We hope this FAQ clears up any questions you have about the incredible GREEN DRAIN™! Feel free to reach out if you have more questions. We’re always here to help!
We have replaced the traditional water trap seals with GREEN DRAIN’s membrane trap seal, and this installation has eliminated all problems with odours coming from the floor drains. Being the largest airport in the Nordic Countries, hosting approximately 100,000 travelers daily, it is very important that our drains remain maintenance free, in order to always ensure a satisfactory customer experience.
GREEN DRAIN has really shown its worth in especially two places. Firstly, in the toilet facilities, where drain traps quickly evaporated due to the low amounts of water used in the new eco-friendly way of floor cleaning, compared to earlier methods. Secondly, in the ventilation rooms where vacuum also caused unpleasant smells from the sewer system. Both places GREEN DRAIN solved the problems easily.
We have already installed the Green Drain with many of our customers. The use of Green Drain is of great satisfaction. Not only in floor drains but also in the air ventilation systems. Green Drain is the perfect solution to prevent penetration of insects and vermin from the drains.
2½ years ago we installed GREEN DRAIN in our hotel rooms and in our swim center, which has generated man-hour savings in the daily cleaning routines. Previously we had to make sure that dirt wasn’t blocking the trap seal, that the trap hadn’t evaporated or wasn’t emptied by vacuum in the pipe system.
In the last 2½ years, we haven’t even touched GREEN DRAIN, which performs far better than we ever dreamt of. Now we don’t get unnecessary visits from guests in the reception regarding complaints about problems that GREEN DRAIN now prevents.
Dear Eddie
Thank you very much for coming out with Chemform and introducing us to the Green Drain. As a food manufacturer,
Mondo Doro is always looking to improve our food safety protocols and hygiene standards.
The Green Drain is an ideal device for our business, we feel secure in the knowledge that nothing that is in our drainage
system can come back out to potentially contaminate our produce. It is also a prevention device that is welcomed by
inspectors. The Green Drain solution is an essential tool for any food manufacturing plant, providing yet another level of
security against possible outbreaks. It is brilliant!
Easily installed and removed for cleaning in particular when we conduct deep sanitisation. The fact that it maintains an
airtight seal is a huge advantage. We will continue to install the Green Drain as part of our safety protocol in our future
projects. Happy to tell my colleagues and any other manufacturer about your winning solution.
Thanks again,
At Greengate, we pride ourselves on providing our residents with a boutique style of living and personal care. Our attention to detail and individual care is key to our services and client experience. At our Maroubra site – St. Brigid’s Green – our drain fly problem was becoming an issue for residents and staff alike, which I can safely say that it is behind us now.
Our fly infestation around our serving and dining areas seemed to be getting worse, spreading to a number of floors. Our hygiene company Medclean suggested we install Green Drains to seal their breeding grounds. We decided to attack the problem from all angles and combined a wholistic solution between our Pest Management and Hygiene and Green Drains.
Eddie initially came out to meet with our facility manager and conducted a site audit to evaluate our challenges. The service was very comprehensive and put together a complete drain maintenance solution plan to proactively protect our problem areas.
I can report that since the installation of Green Drains, we do not get any complaints or experience the challenges we once had, even though the warmer season is upon us. In some areas we could at times smell undesirable drain odours, this has also been addressed and without using harmful chemicals. Even our resident Chef loves it.
I would highly recommend the Green Drain to any age care facility wishing to be proactive in protecting their residents and staff from the potential health risks of unsealed drains.
Warmest regards,
Looking after one of Australia’s premier hospitals, the Northern Beaches Hospital (NBH) can be very challenging. With a 488-bed facility, there is always something going on. NBH services residents across Sydney’s Northern beaches and is still regarded as being new and world class. It is vital to keep the facility safe, clean and operational at all times.
We recently had a drain fly infiltration problem within our utilities, kitchens and service areas and tried to manage it by traditional pest control maintenance. This seemed to work ok initially, then the problem would return, and it appeared to be spreading to different sections. Certain areas also had drain smells from time to time.
We first heard about your product a while ago but didn’t feel it was essential or as a matter of urgency to implement a drain protection device. The problem was becoming worse with multiple complaints and affected areas.
We can report that since we decided to install the Green Drains, we do not get any more complaints about pests nor drain odors from the catering department. It provides me peace of mind knowing we have a preventative solution working for us as an essential tool for our facilities.
I would gladly recommend Green Drains to any colleague or anyone in the healthcare industry.
Kind Regards,
“The Green Drain™ was very easy to install and has stopped all of the bad smells from coming up from the drain. We love it!”
